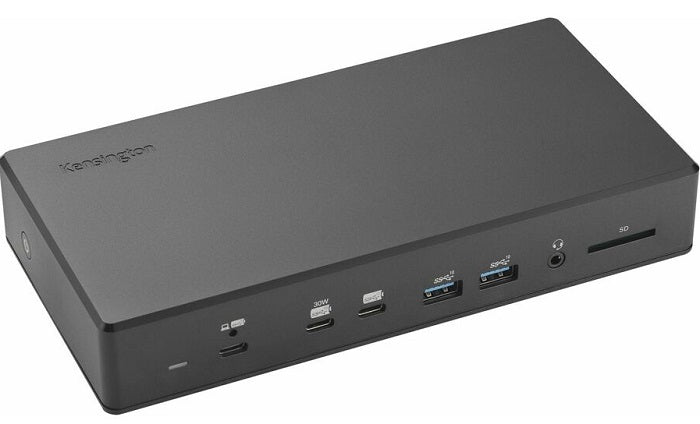

Kensington USB C Thunderbolt 4 Quad Video 17-in-1 Docking Station - Driverless Laptop Dock for MacBook Pro/Air, Dell, HP - Perfect for Home Office & Multi-Monitor Setup

For advanced users with premium laptops, this dock supports resolutions up to single 8K @ 30Hz, or even up to quad 4K @ 30Hz* for high resolution. It also supports up to 1080p @ 240Hz for single and even up to quad 1080p @ 120Hz* with DP1.4 HBR3 DSC enabled. For professional users with commercial laptops, the typical resolutions are single 4K @ 60Hz or and up to quad 1080p @ 30Hz.
***For maximum resolution, the DSC-enabled laptop, docking station, monitor, and laptop all need to support DSC v1.2.

Features include:

Plug-and-Play
A plug-and-play solution for Thunderbolt 4, Thunderbolt 3, USB4, and USB-C Alt-Mode laptops running Windows 10 or above. No drivers or downloads required.

Up to 100W Dynamic Power Delivery
Delivers power whenever and wherever you need it—to host and connected accessories. Supports up to 100W of Power Delivery and provides optimal performance under any usage scenario—including charging connected accessories when host laptop is not connected.

Multiple High-Power USB Ports
10 USB ports offer speeds up to 10Gbps. 4 high-power USB-C ports include 1 x ultrafast 30W port ideal for iPad/phone charging and 3 x 15W ports ideal for phone/headphone charging. 6 x 4.5W USB-A ports are available for keyboards, mice, webcams, thumb drives, and other peripherals.

Secure Screw Lock Connection
Host cable is equipped with secure screw lock connector for a consistent and reliable connection between the docking station and the laptop.

2.5Gbps Ethernet, Audio Combo Jack, and SD Card Slot
A 2.5Gbps Ethernet port provides a fast and reliable connection for network-intensive applications. The audio combo jack combines the functionality of both a headphone jack and a microphone jack into a single connector. The UHS-II SD card slot supports fast data transfers.

Free Kensington DockWorks™ Software and 3-Year Limited Warranty
Free DockWorks™ software delivers the best connection, performance, and security from your Kensington dock. Enjoy peace of mind knowing your covered by Kensington with a professional warranty.

Specifications:

• Compatibility: Windows 10 or above
• USB-A Ports: 6 x: USB 3.2 Gen2 (two front, four back) with 5V/0.9A
• USB-C Ports: 4 x USB-C 3.2 Gen2 (two front, two back) with one 30W(15V/2A) and three 15W(5V/3A) charging
• Audio: 1 x 3.5mm Combo Microphone & Headphone Port (front)
• Video Ports: DisplayPort, HDMI
• Video Output: 2 x DisplayPort v1.4, 2 x HDMI v2.1
• Maximum Resolution Supported: Maximum Resolution (DP1.4/HBR3 with DSC On): Single 8K at 30Hz, Quad 4K at 30Hz. Typical Resolution (DP1.4/HBR3): Single 4K at 60Hz, Quad 1080p at 30Hz.

Physical Specifications:

• Height: 8.27"
• Width: 4.13"
• Depth: 1.46"
• Weight (Approximate): 1.33 lbs
